Conveyor Belt Cleaner

Conveyor Belt Cleaning Solutions with Tecnovap Steam machines

What is the Conveyor Belt Cleaning System?

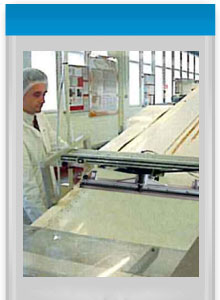

The Conveyor Belt Cleaning System is a steam cleaning device that has been developed to improve various standards associated with traditional conveyor belt cleaning methods. Attaching to a range of Tecnovap steam vacuum machines the Conveyor Belt Cleaner uses the power of continuous superheated dry steam and vacuum to hygienically clean and dry conveyor belt systems.

The Conveyor Belt Cleaning System can be used as either a permanently fixed intergrated unit or a portable mobile unit. This setup usually depends on whether there is a single conveyor belt or multiple conveyor belts that require cleaning. Most commonly portable units are required as many single conveyor belts do not have space for a permanently fixed unit and larger conveyors often have multiple change over points.



Quality Conveyor Belt Cleaning

Conveyor Belt Cleaning Solutions with Jetvac Maxi
Ideal for use in industries like food processing, pharmaceutical and manufacturing where conveyors need hygienic cleaning on a daily basis.



Compared with traditional methods the Conveyor Belt Cleaning System is much faster and easier.



Advantages

Traditionally cleaning of conveyor belts has been regarded as an very laborious task that requires lots of time and physical effort; especially in extreme cases where conveyor need to be dismantled to clean. The Conveyor Belt Cleaning System on the other hand actually enables conveyor belts to be cleaned to a higher and more consistent standard whilst in place and operating; therefore saving hours/days of manual labour time.

In addition to time saving the Conveyor Belt Cleaner also reduces both water and chemical usage. This is possible through the use of continuous 94% superheated dry steam that requires less than 15lt of water per hour. Extra high +180°C steam temperatures produced by Tecnovap steamers also sanitise most surfaces on contact eliminating the need for most chemical disinfectants.

The added benefit of vacuum extraction leaves flat conveyors in a mostly dry state and immediately ready for use. This vacuum extraction combined with low water usage also makes the CCSS ideal for use on conveyor belts in areas without built in drainage.

Where is the Conveyor Belt Cleaning System used?

The JetSteam Tosca is an ideal cleaning solution for small commercial facilities or domestic environments that require shorter periods of cleaning. Providing up to 90 minutes of continuous steam a Tosca can be used to clean floors, walls, ceiling, windows, bathrooms, bedrooms, kitchens, beds, upholstery, curtains and a whole lot more.

Conveyor Belt Cleaning with Tecnovap Steam Cleaner

Food Processing Plants

• Sanitise Conveyor
• Remove food build up
• Speed clean and sanitise other food processing equipment like benches, machinery and ovens.



Conveyor Belt Cleaning Solutions with Jetvac maxi

Pharmaceutical

• Sanitise Conveyor
• Vacuum dust
• Deep clean hard to reach areas and other equipment.

Conveyor Belt Cleaning Solutions with Tecnovap Steam machines
Quote for  Tecnovap Conveyor Belt Cleaner sytem demo for  Tecnovap Conveyor Belt Cleaner sytem

Unique Features of the Conveyor Belt Cleaning System


180 degrees steam cleaning with Tecnovap machines to sanitise the surface

165-180°C Dry Steam

165-180°C superheated dry steam is great for sanitising the conveyor belt surface and cutting through hard to clean soiling like oils and fats.



Portable or Integrated Solutions with Conveyor Belt Cleaning System

Portable or Intergrated

The Conveyor Belt Cleaning System can be used as a fixed system for cleaning a single conveyor or as a portable system for cleaning multiple conveyors.



Continuous 24-hour steam in large water capacities with Tecnvoap Conveyor Cleaner

Continuous Steam

The steam generators that power the Conveyor Belt Cleaning System all feature continuous steam production and have large water capacities.



Control Box in Tecnovap Conveyor Belt Cleaner to control the steam

Control Box

The electronic Control Box is used to regulate the amount of steam released onto the conveyor belt. The unit can be mounted on the conveyor or on the steam generator.



94 degrees dry steam reduce water in just 15 litre per hour

94% Dry Steam

The JetVac / Steam Box steam generators largely reduce water use by producing 94% dry steam that requires only about 15Lt of water per hour.

Conveyor Belt Cleaner System by Tecnovap can clean any type of belts

Conveyor Systems

The Conveyor Belt Cleaning System can be used to effectively and efficiently clean a variety of different style and different sized conveyor belts.


Included Accessories



The CCSS comprises of four main components:


  • Standard 600mm Mountable Squeegee
  • Electronic Control Box
  • 2.5m Vacuum Hose
  • Steam Bacchus Hose 12P


* Suitable Tecnovap steam vacuum system is not included and must be purchased separately.






Recommended Steam Generators

The Conveyor Belt Cleaning System works well with a variety of Tecnovap steam vacuum machines exclusively available in Australia through the Duplex Cleaning Machines distribution network. Ideal steam vacuum units include:


Standard Accessories for the JetVac / Steambox Vac

Kit July:
• Steam Hose
• 2 x Extension Tubes
• Detailing Lance
• Large Triangle Brush
• Large Rectangle Brush
• Round Stainless Brush
• Steel Pad
• Small Stainless Brush
• Small Brass Brush

Kit July Accessories tools for Conveyor Belt Cleaner

Kit Radames:

• Steam/Vac Hose
• 2 x Extension Tubes
• Detailing Lance
• Floor Tool
• Floor Squeegee
• Floor Brush

Kit Radames accessories and tools for cleaning Conveyor Belt Cleaner system

Technical Specifications

Specifications

Steambox Mini

Steambox Pro 3 phase

Steambox Industrial 3 phase

Pressure (Bar)

6

10

10

Water Storage (L)

11

27

40

Steam Temp (°C)

165

180

180

Continuous Steam

yes

yes

yes

Hot water / Chemical Injection

yes

yes

yes

Chemical Injection Temp (°C)

125

145

145

Recovery Vacuum Drum (L)

14

14

35

Machine Weight (Kg)

30

40

140

Max power (W)

3650

4850

13900


Contact Us today to arrange a obligation free test drive - Australia wide - of the Conveyor Belt Cleaning System
